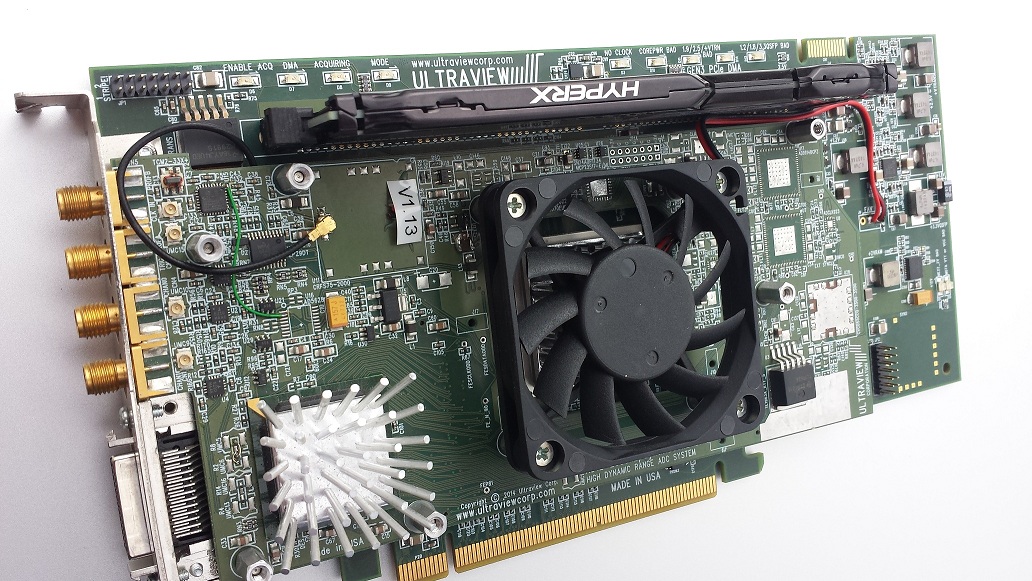

Products Overview

• 8/12/14/16 Bits
• 100MSPS -3000MSPS A/D
• Up to 8GB onboard memory
• Reconfigurable Xilinx Virtex 5 FPGA
• Example user applications and source code
• Precompiled graphical waveform viewers
• Device drivers for Linux, Windows

• 16 bits A/D
• 16 bits D/A (microzed)
• Gigabit ethernet
• PC interface for Linux, Windows
• Powered by zynq chip with the source code for many diverse applications available publicly

• 12 Bit 300MSPS - 3600MSPS
• 14 Bit 40 MSPS - 500MSPSx4
• Ultra High Dynamic Range, with 9dB/10dB noise figure, and -90dBFS/-100dBFS noise floor
• 12 Bit Flat to 2dB over 400MHz to 1600MHz spectrum, Flat to 3dB from 300-1800MHz
• 14 Bit Flat to 2dB over DC to 500MHz
• Optional Worldwide IRIG-B Synchronization with 100ps max. jitter

Ultraview's Pulse Generators use Furaxa patented pulser IC's and supporting electronics to provide turn key solutions for pulsed microwave and radar applications. With a fully open source software suite to control cutting edge hardware, it has never been easier, cheaper, or faster to create custom applications.

• Ultraview brings high energy detection to the consumer market with the Darcon100 EMP and gamma ray detector

• 8/12/14 Bits
• 10MSPS -1600MSPS A/D
• 10MSPS - 1200MSPS D/A
• Up to 16GB onboard memory
• Example user applications and source code
• Precompiled graphical waveform viewers
• Device drivers for Linux, Solaris, Windows

• Power cycle and remove DUT with system on
• User software reinstates configuration space
• Current reporting, overcurrent indication/limiting
• -5% and -10% voltage margining
• Resets DUT when performing live insertion

• Power cycle and remove DUT with system on
• User software reinstates configuration space
• Current reporting, overcurrent indication/limiting
• Resets DUT when performing live insertion

• Dual synchronized synthesizer
• Frequnecy output 300KHz-300MHz
• Software/external TTL control of phase/frequency
• Device drivers for Linux, Windows
• Labview source code available

• Dual frequency-locked synthesizer
• Frequency output 50KHz-1000MHz
• Software as well as external TTL control of frequency and amplitude
• Device drivers for Linux, Windows™ (32 and 64 bit)
• Powerful LabVIEW™ project
• Source code available at no charge
• Output amplitude programmable from -30dBm to +3dBm.

Only $3,995 single quantity ($3,595 each in 2+ quantity)

• Convenient Plug and Play DAQ Environment
• Absolutely NO Set-Up time!*
• Your choice of chassis. (e.g. Rack, Tower, Shuttle, etc.)
• Windows™ or Linux Operating Systems available
• Multi-Board, High Channel Count configurations.
• All systems designed to maximize Ultraview products.
• Custom built by Ultraview IT Professionals
• Ultra Deep Storage Configurations Available Using SSD RAID Array

• Differential output - can also provide two separate single ended complementary outputs.
• Pulse height of up to +4V peak into 50 ohms, on positive output
• Pulse height of up to -4V peak into 50 ohms, on negative output
• Rise time < 80pS, FWHM of approximately 120pS
• Produces pulse on both edges of input clock, thereby doubling frequency.
• Input clock may be sinewave from 50MHz to 2GHz or square wave from 5MHz to 2GHz, producing fundamental comb tooth energy from 10MHz to 4GHz.
• Usable energy to >10GHz.
• Can drive any load, including short, without damage.
• Power Requirements: -12V @ 120mA and +24V @ 80mA

• Excellent 0/180 degree phase matching - better than 10ps.
• Passive ultra-broadband 0/180 power splitter or combiner.
• 200MHz to 10GHz 3dB points. Usable from 50 MHz to 20GHz
• Up to 1 watt power handling capability

• 14 or 16 bits A/D
• 16 bits D/A (microzed)
• Gigabit ethernet
• PC interface for Linux, Windows
• Powered by zynq chip with the source code for many diverse applications available publicly
